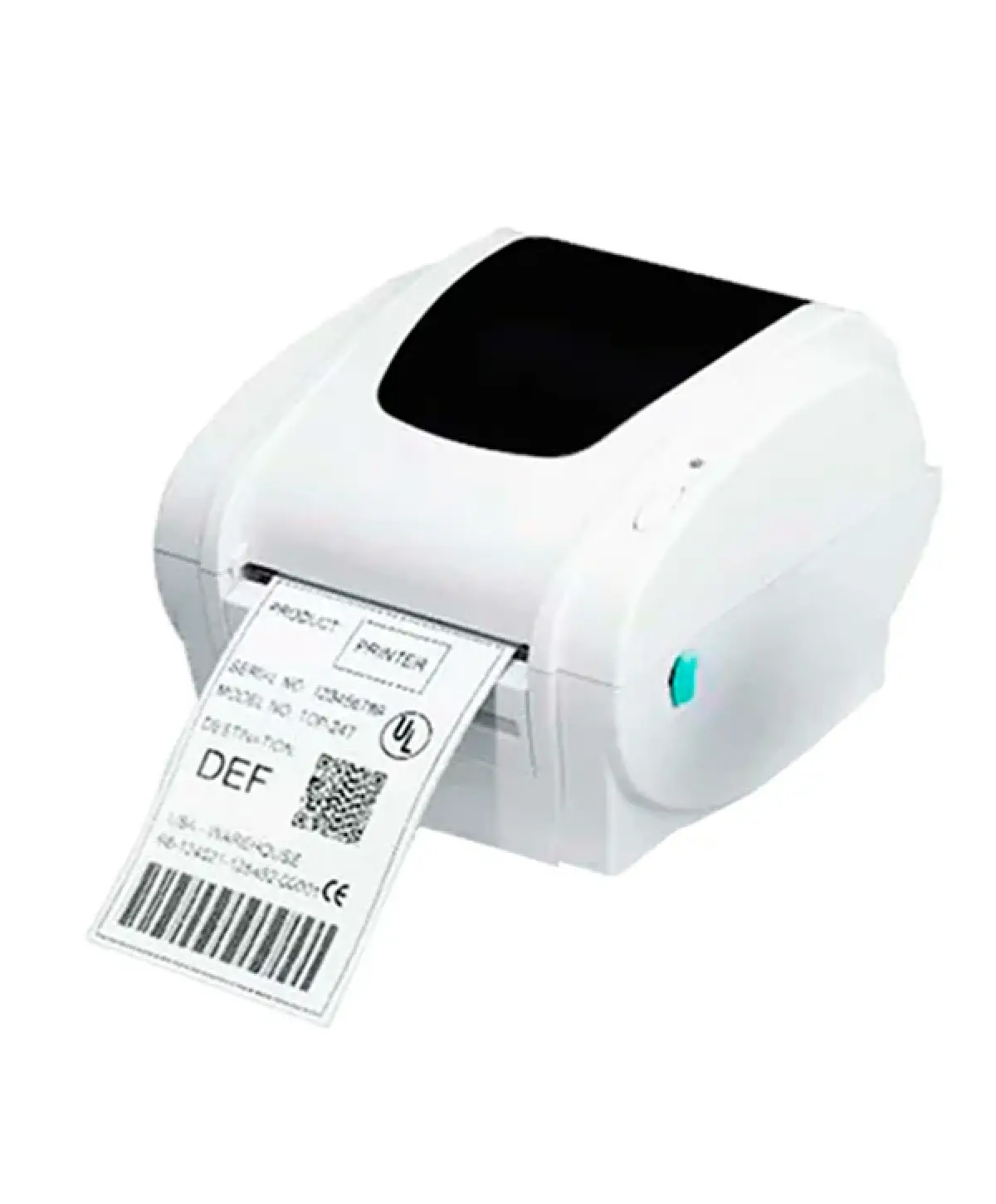

TDP-247
₹22,500.00
(Inclusive of all taxes)
Description
Description
The TDP-247 is a compact and reliable desktop thermal transfer barcode printer designed for businesses that require high-quality, fast, and efficient label printing. Perfect for retail, logistics, healthcare, and manufacturing, the TDP-247 delivers sharp, durable, and precise barcodes and labels every time.
Its user-friendly design ensures easy setup and quick media loading, minimizing downtime and boosting productivity. With robust performance and consistent output, the TDP-247 offers a dependable solution for daily labeling tasks, while keeping operational costs low.
Specification
| Printer Model | TDP-247 (203 DPI) | TDP-345 (300 DPI) |
|---|---|---|
| Resolution | 8 dots/inch (203 DPI) | 12 dots/inch (300 DPI) |
| Printing method | Direct Thermal | Direct Thermal |
| Max. print speed | 178 mm/second (7”/second) | 127 mm/second (5”/second) |
| Max. print width | 108 mm (4.25”) | 108 mm (4.25”) |
| Max. print length | 2,286 mm (90”) | 1,016 mm (40”) |
| Material | Double-walled plastic | Double-walled plastic |
| Physical dimension | 200 mm (W) x 164 mm (D) x 240 mm (H) | 200 mm (W) x 164 mm (D) x 240 mm (H) |
| Weight | 1.9 kg (4.19 lbs) | 1.9 kg (4.19 lbs) |
| Label roll capacity | 127 mm (5”) | 127 mm (5”) |
| Processor | 4 MB Flash memory | 32-bit RISC CPU |
| Memory | 8 MB SDRAM | 8 MB SDRAM |
| Interface | USB 2.0 | USB 2.0 |
| External power supply | External universal switching power supply | External universal switching power supply |
| Operation switch, button, LED | 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red) | 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red) |
| Sensors | Transmissive gap sensor, Black mark reflective sensor (position adjustable), Head open sensor | Transmissive gap sensor, Black mark reflective sensor (position adjustable), Head open sensor |
| Internal fonts | 8 alpha-numeric bitmap fonts | 8 alpha-numeric bitmap fonts |
| Bar code | 1D bar code: Code 39, Code 128, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5 digits and 2 digits) and more | 1D bar code: Code 39, Code 128, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5 digits and 2 digits) and more |
| Font and barcode rotation | 0, 90, 180, 270 degree | 0, 90, 180, 270 degree |
| Printer language | TSP-EZ™ | TSP-EZ™ |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
| Media width | 20 - 112 mm (0.78” - 4.4”) | 20 - 112 mm (0.78” - 4.4”) |
| Media thickness | 0.06 - 0.19 mm (2.36 mil - 7.48 mil) | 0.06 - 0.19 mm (2.36 mil - 7.48 mil) |
| Media core diameter | 25.4 mm (1”) | 25.4 mm (1”) |
| Label length | 10 - 2,286 mm (0.4” - 90”) | 10 - 1,016 mm (0.4” - 40”) |
| Storage | Operation: 5 - 40°C, 25% - 85% non-condensing, Storage: -40°C - 60°C, 10% - 90% non-condensing | Operation: 5 - 40°C, 25% - 85% non-condensing, Storage: -40°C - 60°C, 10% - 90% non-condensing |
| Safety regulation | FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/SELV, Safety, CCC, ENERGY STAR® | FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/SELV, Safety, CCC, ENERGY STAR® |
| Environmental concern | Comply with RoHS, WEEE | Comply with RoHS, WEEE |
| Accessories | Windows labeling software CD disk, USB cable | Windows labeling software CD disk, USB cable |
| Limited warranty | Printer: 2 years, Print head: 25 km (1 million inches) or 12 months which comes first, Platen: 50 km (2 million inches) or 12 months which comes first | Printer: 2 years, Print head: 25 km (1 million inches) or 12 months which comes first, Platen: 50 km (2 million inches) or 12 months which comes first |
| Factory options | External interface (100/10 Mbps) | External interface (100/10 Mbps) |
| Dealer options | Peel-off module | Peel-off module |
| User options | Bluetooth module (serial interface), Ethernet interface (100/10 Mbps), Media width: 80 mm (3.14") or 100 mm (3.94"), Full color label kit, KU-005 Plus programmable slit any keyboard | Bluetooth module (serial interface), Ethernet interface (100/10 Mbps), Media width: 80 mm (3.14") or 100 mm (3.94"), Full color label kit, KU-005 Plus programmable slit any keyboard |
