TA-220
₹13,800.00
(Inclusive of all taxes)
Description
Description

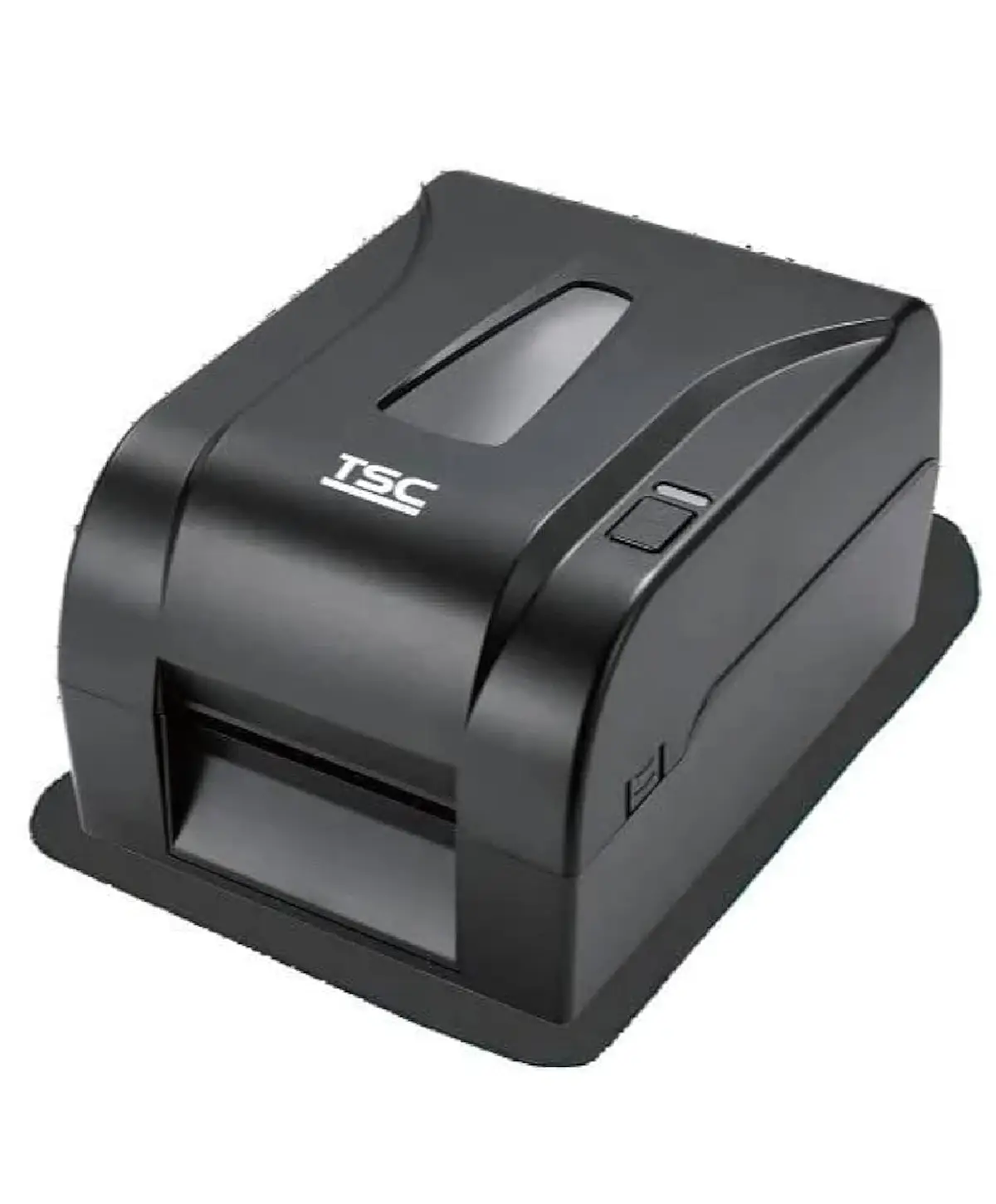

The TA-220, part of the TA220 Series, is a high-performance desktop thermal transfer barcode printer that combines superior speed, reliability, and affordability with the legendary durability TSC is known for. Engineered for businesses that demand efficiency and precision, the TA-220 delivers crisp, long-lasting barcodes and labels for a variety of applications.
Its compact design makes it ideal for retail, healthcare, logistics, and manufacturing environments. With easy setup, intuitive operation, and fast media loading, the TA-220 ensures consistent, high-quality printing while keeping operational costs low.
Specification
| PRINTER MODEL | TA220 | TA320 |
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Printing method | Thermal Transfer & Direct Thermal | |
| Max. print speed | 152.4 mm (6”)/second | 127 mm (5”)/second |
| Max. print width | 108 mm (4.25”) | 105.7 mm (4.16”) |
| Max. print length | 25,400 mm (1000”) | 11,430 mm (450”) |
| Enclosure | ABS plastic | |
| Physical dimension | 211 mm (W) × 166 mm (H) × 284 mm (D) 8.31” (W) × 6.54” (H) × 11.18” (D) |
|
| Weight | 2.5 kg (5.51 lbs) | |
| Label roll capacity | 127 mm (5”) OD | |
| Ribbon | 300 m long, max. OD 67 mm, 1” core (ink coated outside) | |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) | |
| Processor | 32-bit RISC CPU | |
| Memory | 128 MB Flash memory 64 MB SDRAM |
|
| Interface | USB 2.0 Ethernet 10/100 Mbps RS232 USB host, for scanner or PC keyboard |
|
| Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 2.5A, 60W |
|
| Operation switch, button, LED | 1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red) | |
| Sensors | Transmissive gap sensor Black mark reflective sensor (position adjustable) Ribbon end sensor Head open sensor |
|
| Real Time Clock | Standard | |
| Buzzer | Standard | |
| Internal fonts | 8 alpha-numeric bitmap fonts Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
|
| Bar code | 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, EAN-8, EAN-13, Interleaved 2 of 5 with check digit, Codabar, Postnet, MSI, Plessey, China Post, ITF14, EAN 128, GS1 DataBar, Code 11, Logmars 2D bar code: PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417 |
|
| Font and barcode rotation | 0, 90, 180, 270 degree | |
| Printer language | TSPL-EZDT (Compatible to EPL, ZPL, ZPL II, DPL) | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) | |
| Media width | 20 – 114 mm (0.79” – 4.5”) | |
| Media thickness | 0.06 – 0.19 mm (2.36 – 7.48 mil) | |
| Media core diameter | 25.4 – 76.2 mm (1” – 3”) | |
| Label length | 5 – 25,400 mm (0.2” – 1000”) | 5 – 11,430 mm (0.2” – 450”) |
| Environment condition | Operation: 40° – 95°F, 40% – 85% non-condensing Storage: -40° – 140°F, 10% – 90% non-condensing |
|
| Safety regulation | FCC Class A, CE Class A, CB, CCC, cUL, CE, GS, BIS | |
| Environmental concern | Comply with RoHS, REACH, WEEE | |
| Accessories | Windows labeling software CD disk Quick start guide USB cable External universal switching power supply Power cord 300 m ribbon (only for the 300m ribbon model) |
|
| Limited warranty | Printer: 24 months Print head: 25 km (1 million inch) or 12 months whichever comes first Platen: 50 km (2 million inches) or 12 months whichever comes first |
|
| Dealer options | Guillotine cutter (full or partial cut) Peel-off module External roll mount, OD 214 mm (8.4”) with 76.2 mm (3”) core Keyboard display unit KU-007 Plus programmable smart keyboard |
|
