Description

A barcode scanner is an optical hardware input device that reads printed barcodes and converts them into digital information for a computer. It uses a light source to shine on the barcode, a lens to capture the reflected light from the black bars and white spaces, a sensor to convert this light into electrical signals, and a decoder to translate these signals into digital data. This process allows for the rapid and accurate identification and tracking of products and assets across various industries.

How it Works

1. 1. Light Emission:

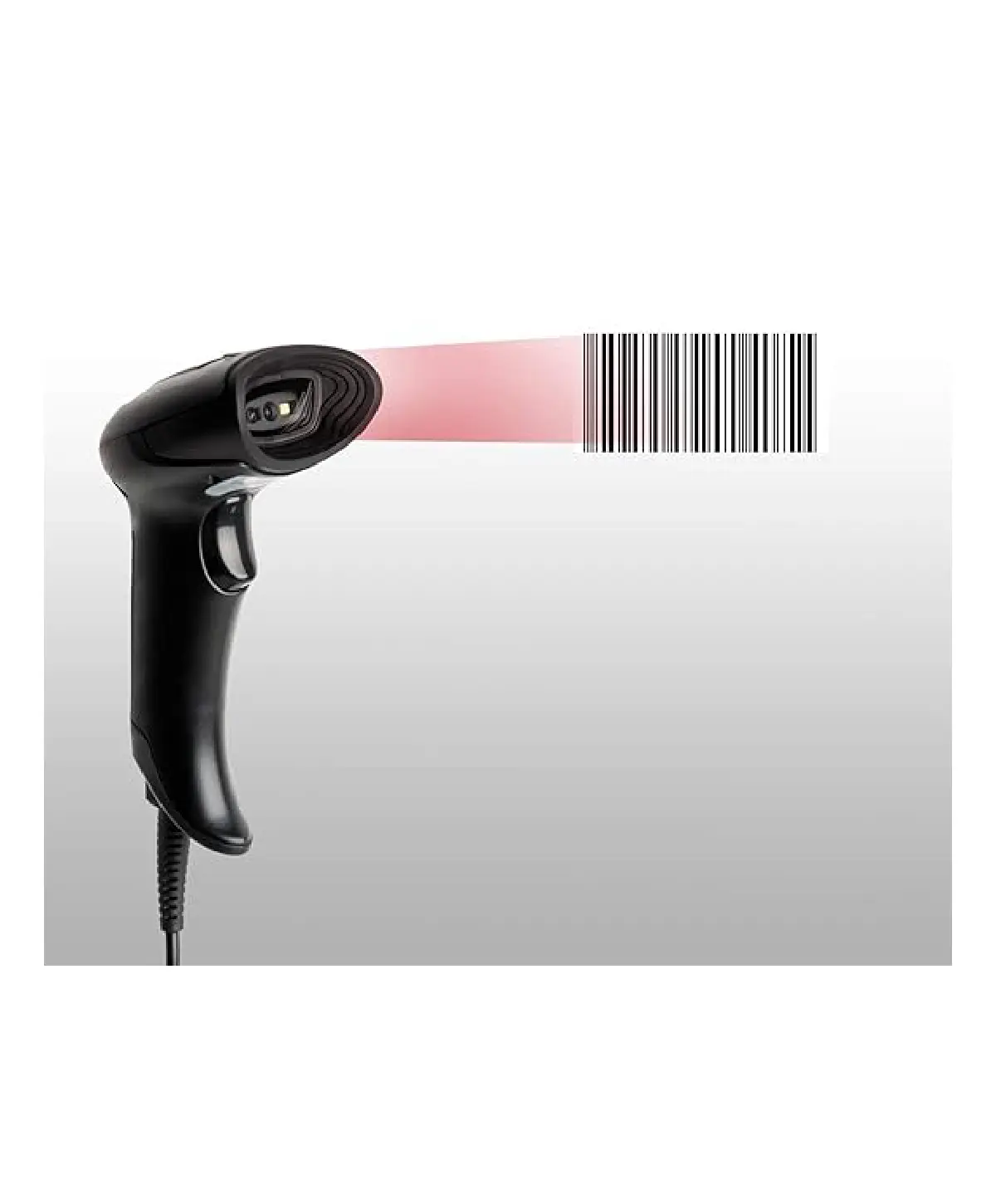

The scanner emits a beam of light, typically a laser or LED, onto the barcode.

1. 2. Light Reflection:

The dark bars of the barcode absorb the light, while the white spaces reflect it.

1. 3. Signal Conversion:

A photodetector or light sensor captures the varying amounts of reflected light.

1. 4. Digitization:

The captured light patterns are converted into an analog waveform.

1. 5. Decoding:

A built-in decoder circuit translates the analog waveform into a binary code (0s and 1s), which is then converted into the specific information contained in the barcode.

1. 6. Data Transmission:

This digital data is sent to a connected computer or output device for processing or database comparison.

Key Components

• Light Source: Provides the light needed to illuminate the barcode.
• Lens: Focuses the light and directs the reflected light onto the sensor.
• Light Sensor/Photodetector: Detects the patterns of reflected light and converts them into electrical signals.
• Decoder: Analyses the electrical signals and translates the barcode’s visual pattern into digital data.

Uses

Barcode scanners are essential for:

• Retail Checkout: Speeding up the process at check-out counters.
• Inventory Management: Tracking stock levels and managing inventory.
• Asset Tracking: Monitoring and managing the location of assets within an organization.
• Logistics: Efficiently managing shipments and tracking goods.
