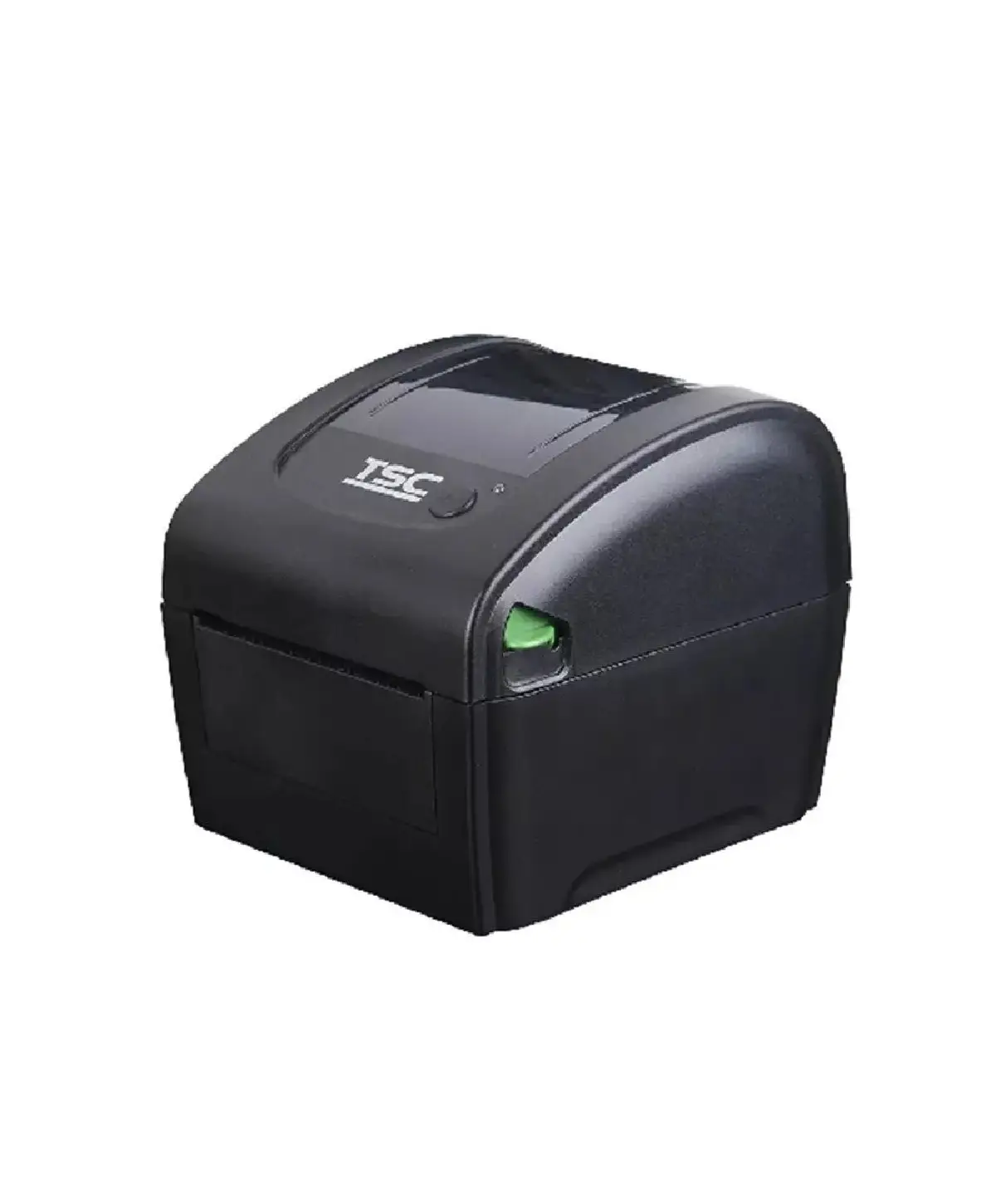

DA-220
₹13,800.00
(Inclusive of all taxes)
Description
Description
The DA-220, part of the DA210/DA220 Series, is a compact and reliable desktop direct thermal barcode printer designed for businesses seeking affordable, efficient, and high-quality printing. With its space-saving design and cost-effective operation, the DA-220 is ideal for small to medium-scale labeling needs.
This printer provides crisp, precise, and legible barcodes and labels without the need for ribbons, reducing maintenance and consumable costs. Perfect for retail, healthcare, logistics, and office applications, the DA-220 combines simplicity, performance, and reliability for everyday labeling tasks.
Specification
| Printer Model / Spec | DA210 | DA310 | DA220 | DA320 |
|---|---|---|---|---|
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Printing method | Direct Thermal | Direct Thermal | Direct Thermal | Direct Thermal |
| Max. print speed | 152.4 mm (6")/second | 102 mm (4")/second | 152.4 mm (6")/second | 102 mm (4")/second |
| Max. print width | 108 mm (4.25") | 105.7 mm (4.16") | 108 mm (4.25") | 105.7 mm (4.16") |
| Max. print length | 2,794 mm (110") | 1,016 mm (40") | 25,400 mm (1,000") | 11,430 mm (450") |
| Enclosure | Double-walled plastic (models vary) | |||
| Physical dimension (W×H×D) | 172 mm (W) × 165 mm (H) × 195 mm (D) — 6.77" × 6.50" × 7.68" | |||
| Weight | 1.5 kg (3.31 lbs) | |||
| Label roll capacity | 127 mm (5") O.D. | |||
| Processor | 32-bit RISC CPU | |||
| Memory | 8 MB Flash; 16 MB DRAM | 8 MB Flash; 16 MB DRAM | 128 MB Flash; 64 MB DRAM | 128 MB Flash; 64 MB DRAM |
| Interface | USB 2.0 (High speed mode); Internal Bluetooth (factory option) | USB 2.0, RS-232 and Ethernet (standard); PCBA2 USB2.0 & Ethernet (factory option); Internal 802.11 a/b/g/n wireless (factory option); Internal Bluetooth (factory option) | PCBA1: USB 2.0 high speed mode, USB Host, RS-232 and Ethernet (standard); PCBA2: USB2.0 & Ethernet (factory option); Internal 802.11 a/b/g/n wireless (factory option); Internal Bluetooth (factory option) | PCBA2: USB2.0 & Ethernet; Internal 802.11 a/b/g/n wireless; Internal Bluetooth (factory option) |
| Power | External universal switching power supply. Input: AC 100-240V, 50/60Hz. Output: DC 24V, 2.5A, 60W. | |||
| Operation switch, button, LED | 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red) | |||
| Sensors | Transmissive gap sensor; Black mark reflective sensor; Head open sensor | |||
| Internal fonts | 8 alpha-numeric bitmap fonts; Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed scalable font | |||
| Bar code | 1D: Code 39, Code 93, Code128UCC, Code128 subsets A/B/C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2/5 digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, China Post. 2D: PDF-417, Maxicode, DataMatrix, QR code, Aztec, MicroPDF417 |
|||
| Font & barcode rotation | 0°, 90°, 180°, 270° | |||
| Printer language | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) | |||
| Media type | Continuous, black mark, fan-fold, notched (outside wound) | |||
| Media width | 19 - 114 mm (0.7" - 4.5") | |||
| Media thickness | 0.055 - 0.19 mm (2.16 - 7.48 mil) | |||
| Media core diameter | 25.4 - 38 mm (1" - 1.5") | |||
| Label length | 10 – 2,794 mm (0.39" – 110") | 10 – 1,016 mm (0.39" – 40") | 10 – 25,400 mm (0.39" – 1,000") | 10 – 11,430 mm (0.39" – 450") |
| Environment condition | Operation: 5°C – 40°C, 25–85% non-condensing. Storage: -40°C – 60°C, 10–90% non-condensing | |||
| Safety regulation | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR (model dependent) | |||
| Environmental concern | Comply with RoHS, WEEE | |||
| Accessories | Windows labeling software CD disk, Quick start guide, USB cable, Power cord, External universal switching power supply | |||
| Limited warranty | Printer: 1 year. Print head: 25 km (1 million inches) or 12 months. Platen: 50 km (2 million inches) or 12 months | |||
| Factory options | Internal Bluetooth, Real Time Clock, Internal 802.11 a/b/g/n wireless, PCBA2 (USB2.0 & Ethernet), Peel-off module, Guillotine cutter | |||
| Dealer / User options | 1.5" adaptor for 1.5" paper core; External roll mount (media O.D. 214 mm / 8.4" with 76.2 mm / 3" core); KP-200 Plus keyboard display; KU-007 Plus programmable smart keyboard | |||
